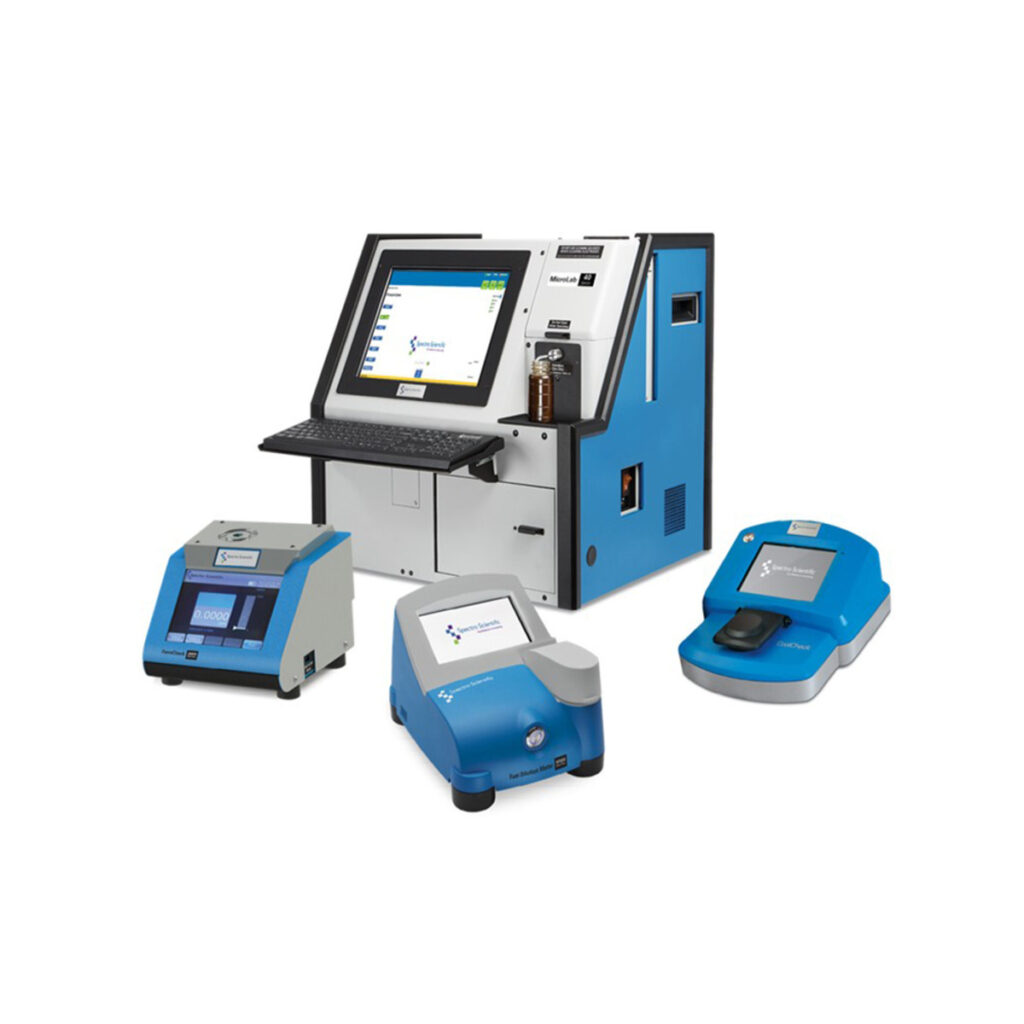

Spectro Scientific – Automated Oil and Coolant Analyzer – MicroLab Series
The MicroLab® combines automation and artificial intelligence in an all-in-one oil analysis tool, making on-site oil analysis possible for any fleet.
MicroLab 40 is designed primarily for fleets operating equipment with hydraulic components or heavy equipment gears and transmissions. This would include off-road mining and construction vehicles as well as over-the-road equipment with hydraulics such as bucket trucks, fire engine ladder trucks or solid waste trucks. The MicroLab 40 is also used in applications for offshore drilling equipment. In addition to the basic oil chemistry and extended elemental analysis provided with the MicroLab 30, the MicroLab 40 model includes a particle counter which provides critical analysis for cleanliness of hydraulic oils and gear oils to determine the health of those oils and mechanical condition of those components.
- Simple to use – no special operator required
- Fast – results in less than 15 minutes
- Easy to read reports – color-coded alarms and maintenance actions
Technical Specifications
| MicroLab 40 | MicroLab 30 | |
|---|---|---|
| For engines, transmissions, power steering, generators, hydraulics, gear oils | For engines, transmissions, power steering, generators | |
| Infrared spectrometer | ✔ | ✔ |
| Kinematic viscometer | ✔ | ✔ |
| OES elemental analyzer | ✔ | ✔ |
| Particle counter | ✔ | |
| Dimensions | 29” (L) x 30” (W) x 26” (H) (74cm x 76cm x 66cm) Weight 130 lbs. (59 kg) | 29” (L) x 30” (W) x 26” (H) (74cm x 76cm x 66cm) Weight 130 lbs. (59 kg) |
Available Models
Technical Specifications
| Dimensions | 29” (L) x 30” (W) x 26” (H) (74cm x 76cm x 66cm) |
|---|---|
| Weight | 130 lbs. (59 kg) |
The MicroLab® combines automation and artificial intelligence in an all-in-one oil analysis tool, making on-site oil analysis possible for any fleet.
MicroLab 40 is designed primarily for fleets operating equipment with hydraulic components or heavy equipment gears and transmissions. This would include off-road mining and construction vehicles as well as over-the-road equipment with hydraulics such as bucket trucks, fire engine ladder trucks or solid waste trucks. The MicroLab 40 is also used in applications for offshore drilling equipment. In addition to the basic oil chemistry and extended elemental analysis provided with the MicroLab 30, the MicroLab 40 model includes a particle counter which provides critical analysis for cleanliness of hydraulic oils and gear oils to determine the health of those oils and mechanical condition of those components.
Key Features
- Simple to use – no special operator required
- Fast – results in less than 15 minutes
- Easy to read reports – color-coded alarms and maintenance actions
Technical Specifications
| Dimensions | 29” (L) x 30” (W) x 26” (H) (74cm x 76cm x 66cm) |
|---|---|
| Weight | 130 lbs. (59 kg) |
The MicroLab® combines automation and artificial intelligence in an all-in-one oil analysis tool, making on-site oil analysis possible for any fleet.
MicroLab 30 is designed for fleets operating over-the-road vehicles or generator equipment. This analyzer best suited for companies interested in testing primarily engine oils to determine the serviceable life of the oil and the equipment condition. The MicroLab 30 analyzes six oil chemistry parameters along with viscosity to determine proper drain intervals. The standard 10 element version provides information on oil contamination and wear metal analysis to determine if mechanical issues exist. The MicroLab 30 can be upgraded to 20 elements if there is an interest to analyze oil additive levels as well as additional wear metals.
Key Features
- Simple to use – no special operator required
- Fast – results in less than 15 minutes
- Easy to read reports – color-coded alarms and maintenance actions
MicroLab Series – On-site Automated Oil Analysis
Full MicroLab Oil Analysis Demo
Brand
Spectro Scientific was founded in 1983 as Spectro Inc. and is one of the largest worldwide suppliers of oil, fuel, and fluid analysis instruments to industry, military and laboratories. With over 8000 instruments sold, and customers on six continents, Spectro Scientific is a leader in the field of condition based maintenance and oil in water analysis. Spectro Scientific, an ISO 9001:2015 company, develops a broad array of fluid analysis instruments for evaluating machine and lubricant condition in the field, in the lab and in highly mobile, handheld applications. The instruments provide critical data about machinery condition and can provide an early warning of equipment failure. Our core businesses are oil and grease analysis, fuel analysis and oil in water analysis for regulatory compliance.
