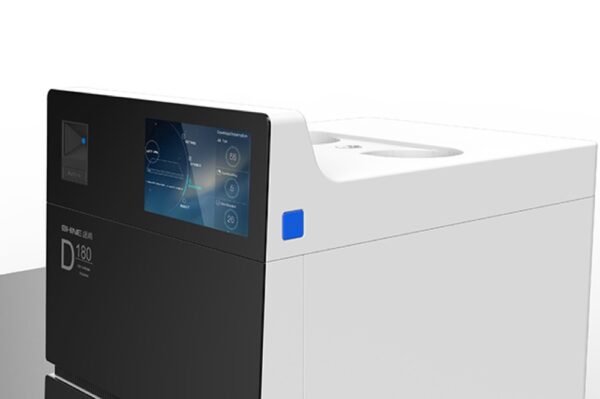

Shine – Ion Chromatograph – CIC-D180
CIC-D180 is a new generation of intelligent ion chromatograph of SHINE. The simple pipeline layout and various component configurations make CIC-D180 flexible and changeable.
CIC-D180 can be equipped with various detectors on demand to realize the combination technology easily. It can also be transformed into dual system and two-dimensional ion chromatograph, which is suitable for various application scenarios.
Technical Specifications
| Pump | |
| Maximum Pressure | 35 MPa (PEEK) |
| Pressure Display Accuracy | ≤ 0.1 MPa |
| Flow Rate Range | 0.001 ~ 9.999 mL/min |
| Conductivity Detector | |
| Cell Volume | ≤ 0.8 μL |
| Detection Range | 0 ~ 50000 μS/cm |
| Detection Resolution | ≤ 0.0020 nS/cm |
| Electronic Noise | 0.02 nS |
| Maximum Pressure | 10.0 MPa |
| Power Requirements | 150 W |
| Dimensions(L*W*H*) | 500 x 360 x 550 mm |
| Net Weight | 32 Kg |
| Gross Weight | 40 Kg |
Key Features
CIC-D180
- High definition touch screen can display the flow path and running status of the instrument in real time, operate with one key and view at any time
- The built-in eluent generator generates high-purity KOH and MSA eluent by electrolysis, which saves manual configuration time and completes more detection items by gradient elution
- Built in gas-liquid separation system can filter out the bubbles in the flow path, reduce the failure of the instrument and improve the performance of the instrument
- In the heating degassing unit, there is an integrated on-line vacuum chamber, which can remove the gas in the eluent on-line to make the experimental results more accurate
- The intelligent alarm function can detect and alarm automatically when the instrument leaks
- Using intelligent detector to detect the residual liquid in the eluent cartridge in real time
- Clarity workstation software can realize the detection and control of each component of the platform, and output the analysis results
- Mobile APP can master every step of analysis in real time without manual attendance, making the work easy and efficient
New Product Launch: CIC-D180 Ion Chromatograph
