KD Scientific – Allegro™ Peristaltic Pumps
The Allegro™ Peristaltic Pump family is engineered for worldwide regulatory compliance. The outstanding durability and quality of this advanced peristaltic system is second to none.
The Allegro™ Peristaltic Pump family is engineered for worldwide regulatory compliance. The outstanding durability and quality of this advanced peristaltic system is second to none.
The Allegro™ I, II & III are available as complete systems. An optional footswitch for remote start/stop, TTL communication cable for synchronous control and other accessories are available. Tubing is sold separately.
KD Scientific recommends Masterflex® L/S® tubing to achieve the best performance from your Allegro™ Peristaltic Pump. The tubing used in the Allegro™ Peristaltic Pump will depend on the pumping application. It is important to select tubing with appropriate chemical resistance for the liquid being pumped. KD Scientific offers various formulations of Masterflex® L/S® tubing.
Key Features
- Flexible Tubing Compatibility: Supports a wide range of tubing materials for various fluid types.
- Accurate Flow Control: Offers precise, adjustable flow rates for consistent results.
- Easy Maintenance: Quick tubing changes and simple, user-friendly interface for seamless operation.
Technical Specifications
| Allegro™ I | Allegro™ II | Allegro™ III | ||
|---|---|---|---|---|
| Tubing Size (inner diameter min/max) | 0.8-8.0 mm | 0.8-4.8 mm | 0.8-8.0 mm | |
| Tubing Durometer Range (min/max) | 55A-62A* | 55A-62A* | 55A-62A* | |
| Flow Rate (per channel, tubing dependent) | Please see tube size flow rate chart | Please see tube size flow rate chart | Please see tube size flow rate chart | |
| Accuracy | ±1.0 % ** | ±1.0 % ** | ±1.0 % ** | |
| Display | 4.3 in WQVGA TFT color display with touch screen | 4.3 in WQVGA TFT color display with touch screen | 4.3 in WQVGA TFT color display with touch screen | |
| Non-Volatile Memory | Stores all settings | Stores all settings | Stores all settings | |
| * The Allegro™ Peristaltic Pump System can run higher durometer tubing depending on the Allegro™ model and customer application. Contact us for additional information.** Accuracy specification assumes user performance of tubing break-in and calibration. KD Scientific pumps are for laboratory use only. They have not been approved by the FDA for clinical use on patients. Specifications are subject to change. | ||||
Available Models
Technical Specifications
| Tubing Size | Tubing ID | Max Flow Rate | |
|---|---|---|---|
| L/S® 13 | 0.8 mm (0.03 in) | 15 ml/min | |
| L/S® 14 | 1.6 mm (0.06 in) | 60 ml/min | |
| L/S® 16 | 3.1 mm (0.12 in) | 240 ml/min | |
| L/S® 25 | 4.8 mm (0.19 in) | 540 ml/min | |
| L/S® 17 | 6.4 mm (0.25 in) | 960 ml/min | |
| L/S® 18 | 7.9 mm (0.31 in) | 1500 ml/min | |

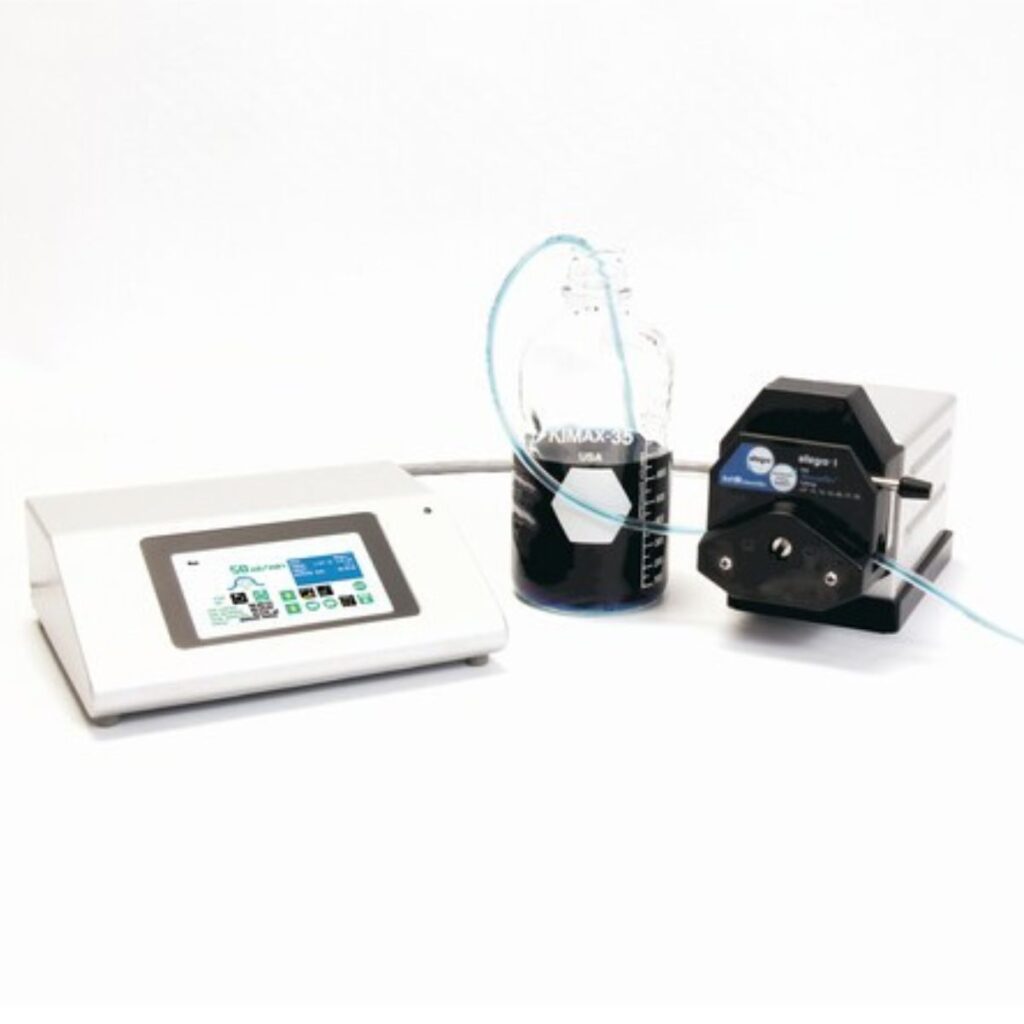

Single channel, Masterflex® Pump Head, Drive, and Controller
The KD Scientific Allegro™ I Peristaltic Pump System allows maintenance free, continuous flow pumping of various liquids. The fluid contacts only the inside surface of the tubing negating concern for valves, O-rings or seals that might be incompatible with fluid being pumped.
Key Features
- One channel pump head
- Flow rates up to 1500 ml/min
- Accepts tubing ID sizes 0.8 mm (0.03 in) – 8.0 mm (0.32 in)
- Compatible with Masterflex® L/S® 13, L/S® 14, L/S® 16, L/S® 25, L/S® 17 and L/S® 18 tubing
- Clearly displays flow rate and total dispensed volume
- User configurable multi-step operation
- Dispenses in forward or reverse direction
- Adjustable flow rate while pump is running
- Stackable sealed remote pump drive with IP32 rating
- Selectable tubing table
- Automatic tubing break-in
- Automatic calibration procedures
- External connectivity with USB interface and I/O port
- Easy to maintain
| Tubing Size | Tubing ID | Max Flow Rate | |
|---|---|---|---|
| L/S® 13 | 0.8 mm (0.03 in) | 10 ml/min | |
| L/S® 14 | 1.6 mm (0.06 in) | 40 ml/min | |
| L/S® 16 | 3.1 mm (0.12 in) | 160 ml/min | |
| L/S® 25 | 4.8 mm (0.19 in) | 360 ml/min | |

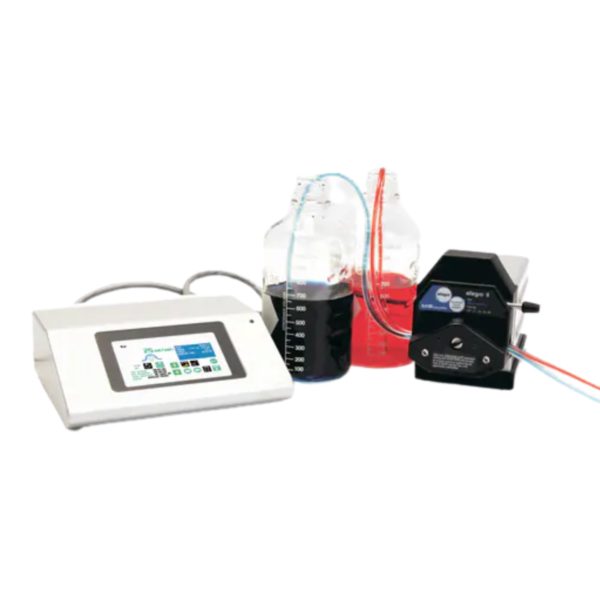

Dual channel, Masterflex® Pump Head, Drive, and Controller
The KD Scientific Allegro™ II Peristaltic Pump System allows maintenance free, continuous flow pumping of various liquids. The fluid contacts only the inside surface of the tubing negating concern for valves, O-rings or seals that might be incompatible with fluid being pumped.
Key Features
- Two channel pump head
- Two simultaneous individual flows or one combined flow
- Flow rates up to 720 ml/min with combined channels
- Accepts tubing ID sizes 0.8 mm (0.03 in) – 4.8 mm (0.19 in)
- Compatible with Masterflex® L/S® 13, L/S® 14, L/S® 16 and L/S® 25 tubing
- Clearly displays flow rate and total dispensed volume
- User configurable multi-step operation
- Dispenses in forward or reverse direction
- Adjustable flow rate while pump is running
- Stackable sealed remote pump drive with IP32 rating
- Selectable tubing table
- Automatic tubing break-in
- Automatic calibration procedures
- External connectivity with USB interface and I/O port
- Easy to maintain
| Tubing Size | Tubing ID | Max Flow Rate | |
|---|---|---|---|
| L/S® 13 | 0.8 mm (0.03 in) | 10 ml/min | |
| L/S® 14 | 1.6 mm (0.06 in) | 40 ml/min | |
| L/S® 16 | 3.1 mm (0.12 in) | 160 ml/min | |
| L/S® 25 | 4.8 mm (0.19 in) | 360 ml/min | |
| L/S® 17 | 6.4 mm (0.25 in) | 640 ml/min | |
| L/S® 18 | 7.9 mm (0.31 in) | 1000 ml/min | |
Two, single channel, Masterflex® Pump Head, Drive, and Controller
The KD Scientific Allegro™ III Peristaltic Pump System allows maintenance free, continuous flow pumping of various liquids. The fluid contacts only the inside surface of the tubing negating concern for valves, O-rings or seals that might be incompatible with fluid being pumped.
Key Features
- Two single channel pump heads
- Two simultaneous individual flows or one combined flow
- Flow rates up to 2000 ml/min with combined channels
- Accepts tubing ID sizes 0.8 mm (0.03 in) – 8.0 mm (0.32 in)
- Compatible with Masterflex® L/S® 13, L/S® 14, L/S® 16, L/S® 25, L/S® 17 and L/S® 18 tubing
- Clearly displays flow rate and total dispensed volume
- User configurable multi-step operation
- Dispenses in forward or reverse direction
- Adjustable flow rate while pump is running
- Stackable sealed remote pump drive with IP32 rating
- Selectable tubing table
- Automatic tubing break-in
- Automatic calibration procedures
- External connectivity with USB interface and I/O port
- Easy to maintain
