Interscience – Inhibition Zone Reader
Accuracy and Traceability of Results
Inhibition zone measurement is time-consuming. The inhibition zone readers enable quicker and more accurate measurements.
They also guarantee the traceability of results.
Available Models
Inhibition zone reader
Essential Features
Scan 500 is an inhibition zone reader. It has been designed for the pharmaceutical industries, medical research and animal health.
- Inhibition zone measurement accuracy: ± 0,3 mm
- Fast: up to 7 inhibition zones in 1 click
- Protocols: wells, peni-cylinders, paper disks
- Interpretation systems: EUCAST, CA-SFM, CLSI and customizable
- Traceability: data import and export
Applications
Scan makes it possible to check the effectiveness of an antibiotic on a microorganism by measuring the zone of inhibition. In addition, it adapts to perform titration and/or antibiotic dosage in the pharmaceutical industry. In the field of animal health, the Scan evaluates antimicrobial resistance with its SIR interpretation.
HD inhibition zone reader
High-performance
Scan 1200 is an inhibition zone reader. It has been designed for the pharmaceutical industry, medical research and animal health.
- Inhibition zone measurement accuracy: ± 0.3 mm
- Quick: up to 7 inhibition zones in 1 click
- Protocols: wells, peni-cylinders, paper disks
- Interpretation systems: EUCAST, CA-SFM, CLSI and customizable
- Traceability: data import and export
Applications
Scan makes it possible to check the effectiveness of an antibiotic on a microorganism by measuring the zone of inhibition. In addition, it adapts to perform titration and/or antibiotic dosage in the pharmaceutical industry. In the field of animal health, the Scan evaluates antimicrobial resistance with its SIR interpretation.

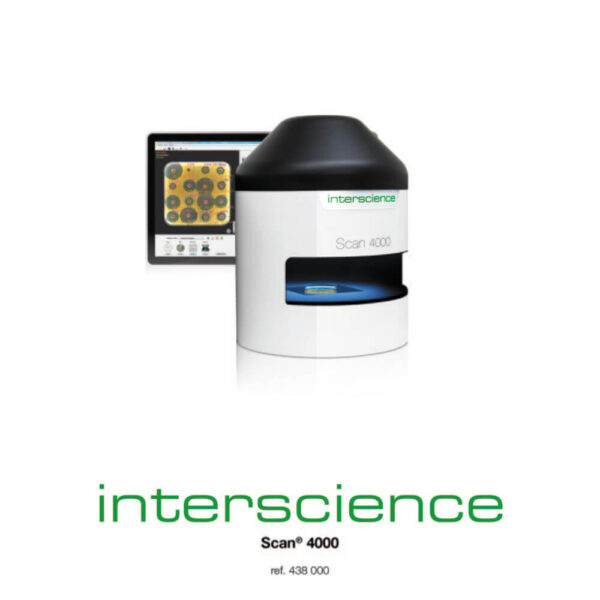

Ultra HD inhibition zone reader
State-of-the-art technology
Scan 4000 is an ultra HD inhibition zone reader. It has been designed for the pharmaceutical industries, medical research and animal health. Scan 4000 reads square Petri dishes of 120 mm and round Petri dishes up to 150 mm.
- Inhibition zone measurement accuracy: ± 0.1 mm
- Fast: up to 16 inhibition zones in 2 to 4 seconds
- Protocols: wells, peni-cylinders, paper disks
- Interpretation systems: EUCAST, CA-SFM, CLSI and customizable
- Traceability: data import and export
Applications
Scan makes it possible to check the effectiveness of an antibiotic on a microorganism by measuring the zone of inhibition. In addition, it adapts to perform titration and/or antibiotic dosage in the pharmaceutical industry. In the field of animal health, the Scan evaluates antimicrobial resistance with its SIR interpretation.
Key Features
Inhibition Zone Reader
- Quick results
- The result is categorized SIR (Green: susceptible, Yellow: intermediate, Red: resistant)
- Detection on all petri-dishes
- 21 CFR Part 11 compliance
- Connects to the LIMS in bi-directionality and can be connected to the diluter and plater via dataLink traceability system.
- Multiple export possibilities to save manual input time
- All data are archived
- Integrated databases that can be modified by user
Technical Specifications
Scan 500
| Reference | 436 000 |
| Camera | CMOS color camera |
|---|---|
| Lens | M12 lens |
| Zoom | x 28 |
| Resolution | 1 megapixel |
| Counting time | Up to 1000 colonies per second |
| Minimal size of a colony | 0.1 mm |
| Lighting technology | Long-life White LEDs / Dark Field |
| Lighting system | Automatic with 6 combinations, top and/or bottom light, white or black background |
| Counting | Automatic with manual control |
| Dimensions (w x d x h) | 28.5 x 26.5 x 29 cm |
| Weight | 8.4 kg |
| Box (w x d x h) | 50 x 40 x 40 cm |
| Gross weight | 11 kg |
| Voltage – Frequencies | 100-240 V~ 50-60 Hz |
| Power | 20 W |
Scan 4000
| Reference | 438 000 |
| Camera | HD CCD color camera |
|---|---|
| Lens | HD Japanese lens |
| Zoom | x 69 |
| Resolution | 5 megapixels |
| Counting time | Up to 1000 colonies per second |
| Minimal size of a colony | ± 0.1 mm |
| Lighting technology | White Dome LED |
| Lighting system | Automatic with 7 combinations, top and/or bottom light, white or black background |
| Counting | Automatic with manual control |
| Dimensions (w x d x h) | 47 x 47 x 64 cm |
| Weight | 25 kg |
| Box (w x d x h) | 60 x 63 x 80 cm |
| Gross weight | 32 kg |
| Voltage – Frequencies | 100-240 V~ 50-60 Hz |
| Power | 140 W |
Scan 1200
| Reference | 437 000 |
| Camera | HD CCD color camera |
|---|---|
| Lens | HD Japanese lens |
| Zoom | x 28 |
| Resolution | 1.2 megapixels |
| Counting time | Up to 1000 colonies per second |
| Minimal size of a colony | ± 0.3 mm |
| Lighting technology | Long-life White LEDs / Dark Field |
| Lighting system | Automatic with 6 combinations, top and/or bottom light, white or black background |
| Counting | Automatic with manual control |
| Dimensions (w x d x h) | 28.5 x 26.5 x 37.5 cm |
| Weight | 9.4 kg |
| Box (w x d x h) | 57 x 42 x 42 cm |
| Gross weight | 12.4 kg |
| Voltage – Frequencies | 100-240 V~ 50-60 Hz |
| Power | 20 W |
Video
Scan 500 and 1200 overview
Unboxing – Automatic Scans model
Unboxing – Scan 4000
Key Industries
- Cosmetics & Personal Care
- Environmental
- Food & Beverage
- Pharmaceutical
Brand
INTERSCIENCE is a French leading manufacturer for microbiology. Our products are used daily in laboratories in more than 120 countries to ensure safe food and products, safe medical resources and innovative research. Our products are ISO 9001 and CE certified, we also follow European directives 2006/42 / EC, 2014/30 / EU and 2014/35 / EU.
