Interscience – Gravimetric Dilutor – DiluFlow series
The Best Solutions for Your Dilutions!
DiluFlow gravimetric diluents automate the dilution of the sample before blending and add reliability to the process.
Available Models
The DiluFlow automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, and all traceability guarantees. The DiluFlow is accompanied by either a single pump or a double pump.
DiluFlow Pro 3 Kg
- Filling rate of 225 mL in 10 seconds
- Dilution factor: 1/2 to 1/99
- Dilution accuracy: > 99%*
- Max weight: 3000g
*with booster in standard or accurate mode
The DiluFlow Pro automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 5 kg. Its robotic arm enables easy work under a laminar flow cabinet. The DiluFlow Pro is accompanied by either a single pump or a double pump.
DiluFlow Pro 5 Kg
- Filling rate of 225 mL in 10 seconds
- Dilution factor: 1/2 to 1/99
- Dilution accuracy: > 99%*
- Max weight: 5000g
*with booster in standard or accurate mode
The DiluFlow Elite automatically dilutes a solid sample in seconds, with the appropriate weight of diluent, up to a total weight of 1000 g for the 1 Kg model and 5000g for the 5 Kg model. Its full traceability enables the recording of all operations. They are available with a single pump or double pump. The DiluFlow Elite 1 Kg offers the best solution to prepare your samples in the pharmaceutical and cosmetic industries, as well as animal health. The DiluFlow Elite 5 Kg is programmable and connectable for up to 6 diluents and offers the best solution to dilute any type of sample.
DiluFlow Elite 1 Kg and DiluFlow Elite 5 Kg
- Filling rate of 225 mL in 8 seconds
- Dilution factor: 2 to 1000, customizable fractions
- Dilution accuracy: > 99%*
- Max number of pumps: 2 integrated + 4 external
*with booster in standard or accurate mode
Key Features
DiluFlow series
- Widest possible opening for the bag and lowest loading threshold on the market
- allows optimal comfort of use, especially under a laminar flow hood.
- Removable drip tray prevents tedious cleaning
- Gecko grip holding system holds the bag without pressing hard, keeping analysis bag glue free
- Nozzle plate enables easy sample dropping, prevent contamination
- Equipped with Kit booster which speeds up processor by 2 times
- Muliti-dispensing mode allows for serial dispensing in small containers such as 9 ml tube without weighing, by doing just one calibration on the scale
- In compliance with ISO 6887, ISO 7218, WEEE2002/96/EC, RoHS 2002/95/EC, CE
Technical Specifications

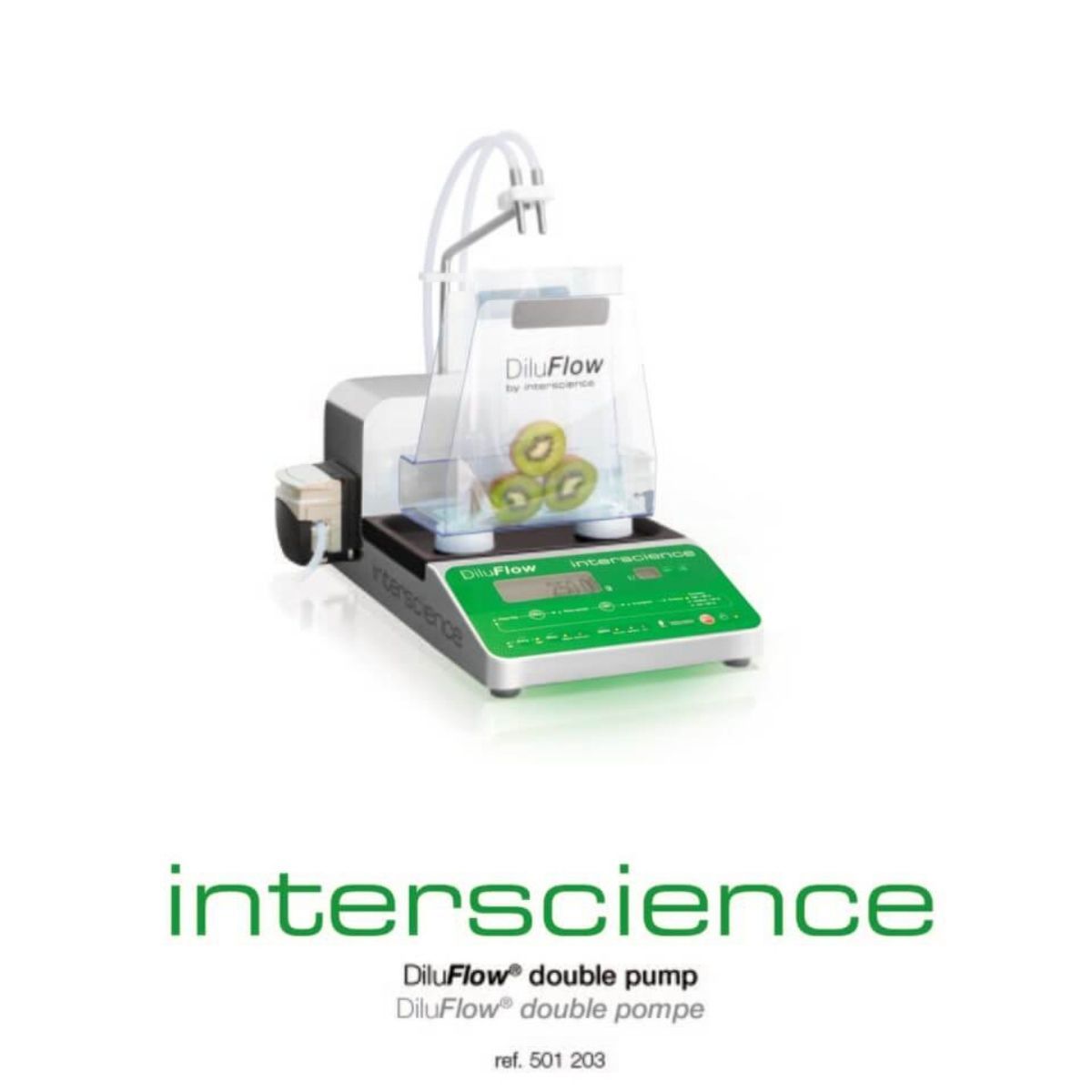

DiluFlow® 3 kg
| Single pump | Double pump | |
| Reference | 501 103 | 501 203 |
| BagOpen® height < 30 cm | ✔ | |
| Patented removable DripTray | ✔ | |
| BagOpen® with GeckoGrip | ✔ | |
| Magnetic stand for BagOpen® (patented shape) | ✔ | |
| LightCode: color status LED | ✔ | |
| Net weight | 9.6 kg | 12 kg |
| Dimensions (w x d x h) | 31 x 44 x 38 cm | 37 x 44 x 38 cm |
| Box (w x d x h) | 54.5 x 54.5 x 42.5 cm | |
| Gross weight | 14.8 kg | |
| Voltage frequencies | 100-240 V ~ 50/60 Hz | |
| Fuses | T3, 15A L 250V 5×20 mm | |
| Power | 60 W | |
| International protection marking | 22 | |
DiluFlow® Pro 5 kg
| Single pump | Double pump | |
| Reference | 502 105 | 502 205 |
| BagOpen® height < 30 cm | ✔ | |
| Patented removable DripTray | ✔ | |
| BagOpen® with GeckoGrip | ✔ | |
| Magnetic stand for BagOpen® (patented shape) | ✔ | |
| LightCode: color status LED | ✔ | |
| Net weight | 11.8 kg | 14.2 kg |
| Dimensions (w x d x h) | 31 x 42 x 38 cm | 37 x 48 x 38 cm |
| Box (w x d x h) | 54.5 x 54.5 x 55 cm | |
| Gross weight | 17.4 kg | |
| Voltage frequencies | 100-240 V ~ 50/60 Hz | |
| Fuses | T3, 15A L 250V 5×20 mm | |
| Power | 60 W | |
| International protection marking | 32 | |

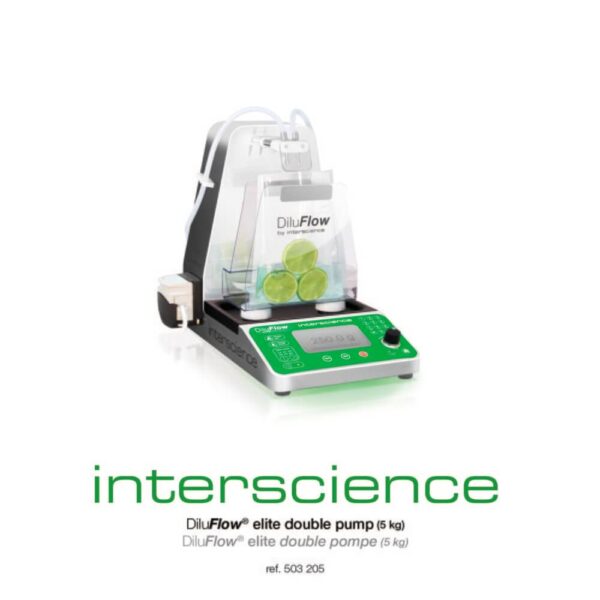

DiluFlow® Elite Gravimetric Dilutor 1 Kg / 5 Kg
| DiluFlow® Elite 1 Kg | DiluFlow® Elite 5 Kg | |||
|---|---|---|---|---|
| Single pump | Double pump | Single pump | Double pump | |
| Reference | 503 105 | 503 205 | 503 101 | 503 201 |
| BagOpen® height < 30 cm | ✔ | ✔ | ||
| Patented removable DripTray | ✔ | ✔ | ||
| BagOpen® with GeckoGrip | ✔ | ✔ | ||
| Magnetic stand for BagOpen® (patented shape) | ✔ | ✔ | ||
| LightCode: color status LED | ✔ | ✔ | ||
| Net Weight | 12.6 kg | 14.8 kg | 12.6 kg | 14.8 kg |
| Dimensions (w x d x h) | 31 x 42 x 38 cm | 37 x 42 x 38 cm | 31 x 42 x 38 cm | 37 x 42 x 38 cm |
| Box (w x d x h) | 54.5 x 54.5 x 55 cm | 54.5 x 54.5 x 55 cm | ||
| Gross weight | 18 kg | 18 Kg | ||
| Voltage – Frequencies | 100-240 V ~ 50/60 Hz | 100-240 V ~ 50/60 Hz | ||
| Power | 60 W | 60 W | ||
| International protection marking | 32 | 32 | ||
Video
Diluflow Overview
DuliFlow Unboxing
Key Industries
- Cosmetics & Personal Care
- Environmental
- Food & Beverage
- Pharmaceutical
Brand
INTERSCIENCE is a French leading manufacturer for microbiology. Our products are used daily in laboratories in more than 120 countries to ensure safe food and products, safe medical resources and innovative research. Our products are ISO 9001 and CE certified, we also follow European directives 2006/42 / EC, 2014/30 / EU and 2014/35 / EU.
