ibidi – Labware – µ-Slide 8 Well
A chambered coverslip with 8 wells for cell culture, immunofluorescence, and high-end microscopy
The µ-Slide 8 Well is a versatile chambered coverslip ideal for cell culture, immunofluorescence, and high-end microscopy applications. Its 8-well format supports various advanced imaging techniques.
Key Features
- A chambered coverslip with 8 wells for cell culture, immunofluorescence, and high-end microscopy
- All-in-one 8 well chamber slide for cost-effective experiments—small number of cells and low volume of reagents needed
- In this microscopy slide, the cells are imaged on a No. 1.5 polymer coverslip bottom with the highest optical quality
- A cell culture chamber suitable for most microscopy techniques (e.g., DIC, widefield fluorescence, confocal microscopy, two-photon microscopy, FRAP, FRET, FLIM, or LSFM)
Applications
- Immunofluorescence staining
- Live cell imaging over extended time periods
- Transfection assays
- Differential interference contrast (DIC) when using a DIC lid
Technical Specifications
| Outer dimensions (w x l) | 25.5 x 75.5 mm² | |
| Number of wells | 8 | |
|---|---|---|
| Dimensions of wells (w x l x h) | 9.4 x 10.7 x 6.8 mm³ | |
| Volume per well | 300 µl | |
| Total height with lid | 8 mm | |
| Growth area per well | 1.0 cm² | |
| Coating area per well | 2.20 cm² | |
| Bottom: ibidi Polymer Coverslip | ||
Key Features
- Chambered coverslip with 8 independent wells and a non-removable polymer coverslip-bottom
- ibiTreat (tissue culture-treated) surface for optimal cell adhesion
- Imaging chamber slide with excellent optical quality for high-end microscopy
- Closely fitting lid
- Compatible with staining and fixation solutions
- Biocompatible plastic material—no glue, no leaking
- Also available as an adhesive version without a bottom: sticky-Slide 8 Well
- Also available with a Glass Coverslip Bottom: µ-Slide 8 Well Glass Bottom for special microscopic applications
- Additional version available with a 500 µm grid: µ-Slide 8 Well Grid-500

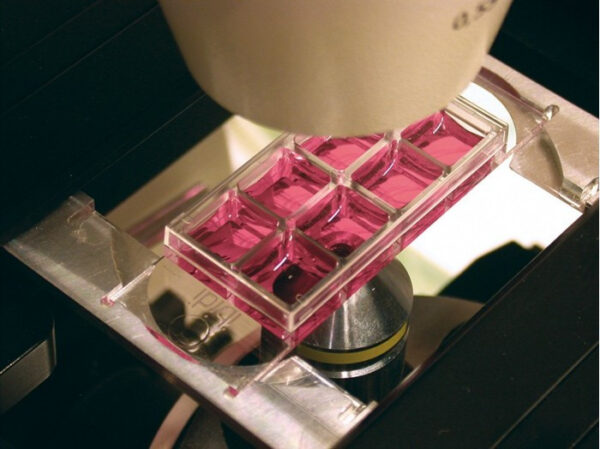

Cell Culture and Microscopy Using the µ-Slide 8 Well
