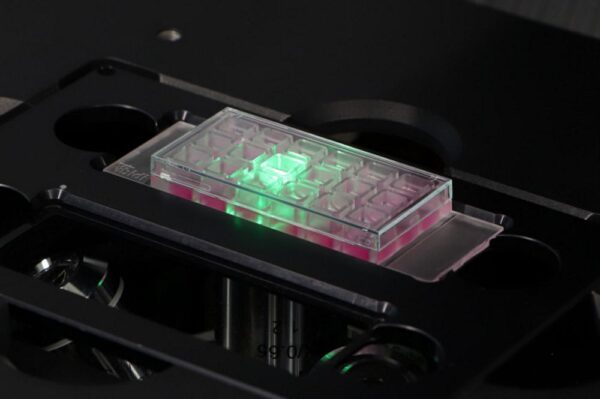

Ibidi – Labware – µ-Slide 18 Well
A chambered coverslip with 18 wells for cell culture, immunofluorescence, and high-end microscopy
The µ-Slide 18 Well is ideal for immunofluorescence stainings, toxicological screenings, and cell surface coatings, especially, when multiple conditions on one slide are needed.
Key Features
- All-in-one 18 well chamber slide for cost-effective experiments with small cell numbers and low reagent volumes
- A microscopy slide that is ideal for high-resolution imaging through the No. 1.5 polymer coverslip bottom with the highest optical quality
- A cell culture chamber suitable for various microscopy techniques
Product outline
- A µ-Plate with 96 wells to investigate angiogenesis in high throughput tube formation assays
- A high throughput screening plate with full ANSI/SLAS (SBS) and robotics compatibility
- Brilliant cell visualization without gel meniscus formation
- Cost-effective high throughput experiments, requiring only 10 µl of gel per well
- Similar to µ-Slide Angiogenesis but with 96 wells in a multiwell plate format
Applications
- Cultivation and high-resolution microscopy of cells
- Immunofluorescence staining and fluorescence microscopy of living and fixed cells
- Live cell imaging over extended time periods
- Transfection assays
- Differential interference contrast (DIC) microscopy when used with a DIC lid
Technical Specifications
| Outer dimensions (w x l) | 25.5 x 75.5 mm² | |
| Number of wells | 18 | |
|---|---|---|
| Dimensions of wells (w x l x h) | 5.7 x 6.1 x 6.8 mm³ | |
| Volume per well | 100 µl | |
| Height with/without lid | 8.2/6.8 mm | |
| Growth area per well | 0.34 cm² | |
| Coating area per well | 1.15 cm² | |
| Bottom: ibidi Polymer Coverslip | ||
