Binder – Constant Climate Chambers – Series KBF Pro

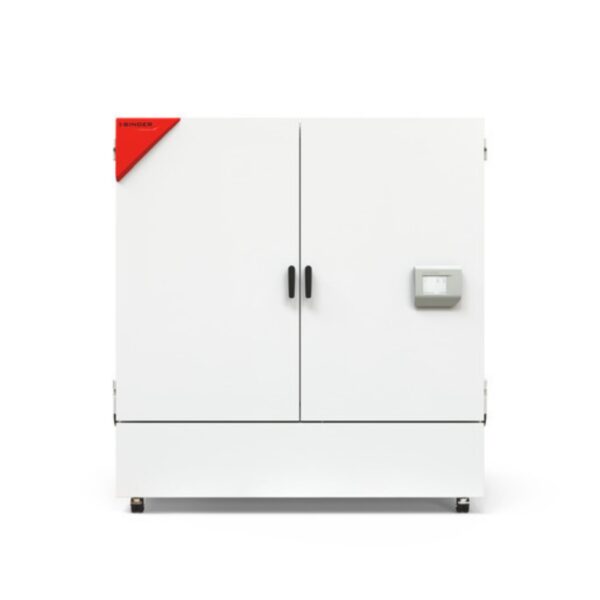

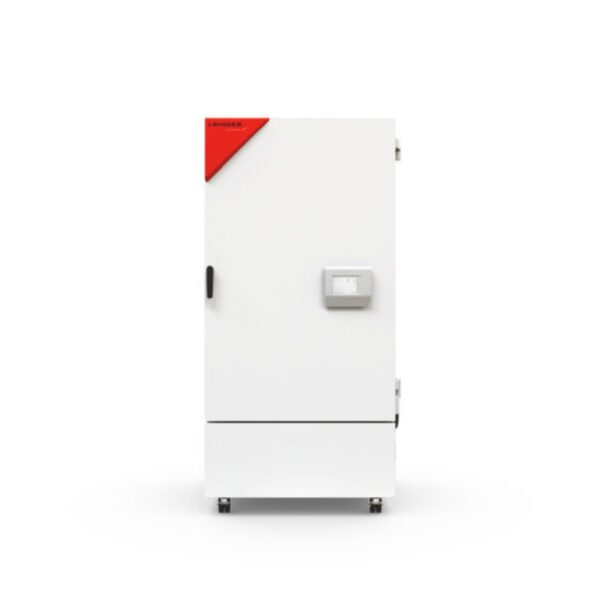

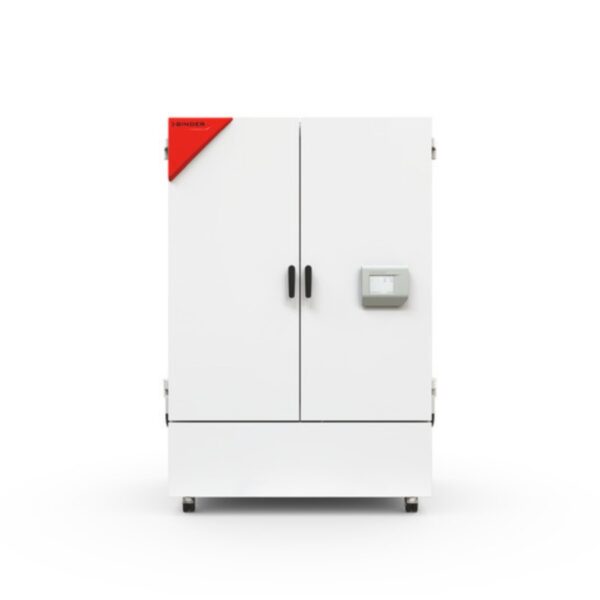

Constant Climate Chamber KBF PRO
Enables advanced material testing in an extended temperature and humidity range (-20 °C to +100 °C and 10% to 98% RH), expandable with light modules for photostability testing or plant growth.
Particularly suitable for pharmaceutical tests within a temperature and humidity range of 0 °C to +70 °C and 10% to 80% RH.
Key Features
- Homogeneous climate conditions thanks to APT.line™ technology
- Automatic water and wastewater management
- Pressure humidification with fast response times
Technical Specifications
| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |
| KBF PRO 130 | 900 x 1,050 x 710 mm | 656 x 500 x 386 mm | 142 kg | 127 L |
| KBF PRO 260 | 930 x 1,396 x 900 mm | 656 x 695 x 575 mm | 197 kg | 262 L |
| KBF PRO 470 | 930 x 1,951 x 900mm | 656 x 1,250 x 575 mm | 249 kg | 472 L |
| KBF PRO 720 | 1,285 x 1,951 x 900 mm | 1,011 x 1,250 x 575 mm | 312 kg | 727 L |
| KBF PRO 1060 | 1,285 x 1951 x 1,175 mm | 1,011 x 1,250 x 847 mm | 360 kg | 1,070 L |
| KBF PRO 1600 | 1,795 x 1,951 x 1,175 mm | 1,521 x 1,250 x 847 mm | 450 kg | 1,610 L |
Available Models
Technical Specifications
| Max. heat compensation at 40 °C [W] | 450 |
| Temperature fluctuation [± K] | 0.1 |
|---|---|
| Temperature range [°C] | -20…100 |
| Power frequency [Hz] | 50/60 |
| Rated Voltage [V] | 208…240 |
| Unit fuse [A] | 16 |
- Temperature range: -20°C to +100°C
- Humidity range: 10% to 98% RH
- Up to 40% lower energy consumption compared to the previous model
- Cooling with climate-neutral R-290 refrigerant
- Two racks with stainless-steel telescopic rails
- Signal triangle with light-up status display (for units with a volume of 470 liters and above)
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Technical Specifications
| Max. heat compensation at 40 °C [W] | 800 |
| Temperature fluctuation [± K] | 0.1 |
|---|---|
| Temperature range [°C] | -20…100 |
| Power frequency [Hz] | 50/60 |
| Rated Voltage [V] | 208…240 |
| Unit fuse [A] | 16 |
- Temperature range: -20°C to +100°C
- Humidity range: 10% to 98% RH
- Up to 40% lower energy consumption compared to the previous model
- Cooling with climate-neutral R-290 refrigerant
- Two racks with stainless-steel telescopic rails
- Signal triangle with light-up status display (for units with a volume of 470 liters and above)
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Technical Specifications
| Max. heat compensation at 40 °C [W] | 800 |
| Temperature fluctuation [± K] | 0.1 |
|---|---|
| Temperature range [°C] | 0…70 |
| Power frequency [Hz] | 50/60 |
| Rated Voltage [V] | 208…240 |
| Unit fuse [A] | 16 |
- Temperature range: 0°C to +70°C
- Humidity range: 10% to 80% RH
- Up to 40% lower energy consumption compared to the previous model
- Cooling with climate-neutral R-600a refrigerant
- Two racks with stainless-steel telescopic rails
- Signal triangle with light-up status display (for units with a volume of 470 liters and above)
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Technical Specifications
| Max. heat compensation at 40 °C [W] | 1,000 |
| Temperature fluctuation [± K] | 0.1 |
|---|---|
| Temperature range [°C] | -20…100 |
| Power frequency [Hz] | 50/60 |
| Rated Voltage [V] | 208…240 |
| Unit fuse [A] | 16 |
- Temperature range: -20°C to +100°C
- Humidity range: 10% to 98% RH
- Up to 40% lower energy consumption compared to the previous model
- Cooling with climate-neutral R-290 refrigerant
- Two racks with stainless-steel telescopic rails
- Signal triangle with light-up status display (for units with a volume of 470 liters and above)
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Technical Specifications
| Max. heat compensation at 40 °C [W] | 1,000 |
| Temperature fluctuation [± K] | 0.1 |
|---|---|
| Temperature range [°C] | -20…100 |
| Power frequency [Hz] | 50/60 |
| Rated Voltage [V] | 208…240 |
| Unit fuse [A] | 16 |
- Temperature range: -20°C to +100°C
- Humidity range: 10% to 98% RH
- Up to 40% lower energy consumption compared to the previous model
- Cooling with climate-neutral R-290 refrigerant
- Two racks with stainless-steel telescopic rails
- Signal triangle with light-up status display (for units with a volume of 470 liters and above)
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
Technical Specifications
| Max. heat compensation at 40 °C [W] | 1,000 |
| Temperature fluctuation [± K] | 0.1 |
|---|---|
| Temperature range [°C] | 0…70 |
| Power frequency [Hz] | 50/60 |
| Rated Voltage [V] | 208…240 |
| Unit fuse [A] | 16 |
- Temperature range: -20°C to +100°C
- Humidity range: 10% to 98% RH
- Up to 40% lower energy consumption compared to the previous model
- Cooling with climate-neutral R-290 refrigerant
- Two racks with stainless-steel telescopic rails
- Signal triangle with light-up status display (for units with a volume of 470 liters and above)
- Optional light modules for ICH photostability testing (for models 260, 470, 720)
- Optional LED light modules for plant growth (for models from 260)
