Bettersize – Automatic Powder Characteristics Tester – PowderPro A1
PowderPro A1 automatically analyze powder characteristics such as Angle of Repose, Angle of Fall, Angle of Spatula, Bulk Density, and Tapped Density of a variety of powder materials. Applied image technology automatically controlled by PAD or Android App, PowderPro A1 is an essential tool to research and assess powder.
Description
The PowderPro A1 is a versatile, high-performance instrument capable of measuring and analyzing 14 different powder characteristics, including critical parameters like flowability, compressibility, angle of repose and tapped density.
Technical Specifications
| Measurement | fully automatic |
| Parameters | 8 (measured) + 6 (calculated) |
| Powders | metallic and non-metallic |
| Conformity ASTM Conformity ISO Conformity USP Conformity EP | ASTM D6393-08/D6393-14 ISO 3953: 1993 USP32-NF27<616> EP7.0 07/2010: 20934E |
| Sieve size | 45 – 2000 µm |
| Amplitude | 3 or 14 mm |
| Tapped frequency | 50-300 times per minute (continuous adjustment) |
| Control terminal | PC, PAD, or mobile phone |
| Connection | Wi-Fi |
| Dimensions | 600 × 350 × 730 mm (L × W × H) |
| Weight | 42 kg |
| Power supply | AC 220 V, 50/60 Hz, 230 W |
Key Features
1. Measured and calculated parameters
PowderPro A1 measures fully automatic:
- Angle of Repose and Fall
- Angle of Spatula (Flat Plate Angle)
- Bulk and Tapped Densities
- Dispersibility
- Voidage and Cohesion
PowderPro A1 calculates fully automatic:
- Angle of Difference
- Compressibility
- Uniformity
- Flowability Index
- Floodability Index
- Sieve Size
2. Measure angles with image method
Photographs were taken using high-definition CCD imaging technology. Parameters such as angle of repose, angle of fall and angle of spatula are obtained in a fast and easy way with high precision and good repeatability through the unique image recognition and processing technology.
3. Patented rotary vibration technology:
Ensure smooth surface of the powder and to improve measurement accuracy.
4. Automatic control technology:
Fully automatic PC or mobile control ensures easy usage and operation. Accurate and reliable test results are obtained by SOP mode for standardized testing process.
5. Conformity:
- ASTM D6393-08/D6393-14
- ISO 3953:1993
- USP32-NF27<616>
- EP7.0 07/2010:20934E
6. Data communication:
An electronic scale is connected to the instrument and the weight data is automatically transferred to the system for data processing and calculation of results.
7. Advanced technology of tapped density:
The tapped density is achieved through the perfect combination of variable frequency and rotary vibration technology. The vibration frequency of 50 to 300 times per minute can be continuously adjusted; vibration amplitude of 3 or 14 mm can be selected. During vibration, the cylinder is in a uniform rotation state, this guarantees the horizontal powder surface and improves the accuracy of the reading.

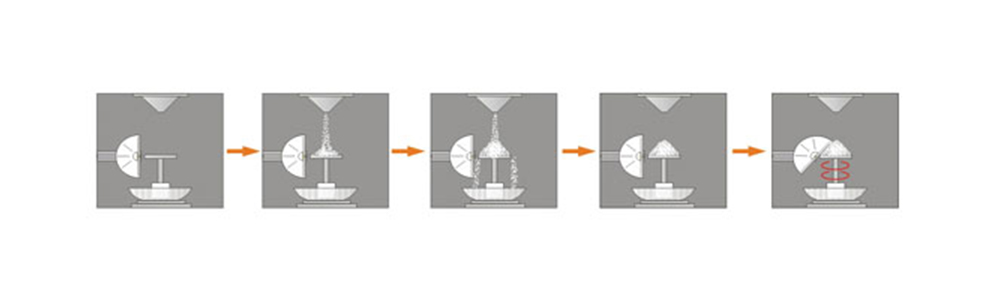

Measure Angle of Repose
Measure Bulk Density and Tapped Density
